Getting started

getting-started.Rmd

This page installs rupturesRcpp and runs a first detection, from data to plot.

What the package does

rupturesRcpp detects change-points in multivariate time series. A change-point is a time at which the behaviour of a series changes: its mean, its variance, its autocorrelation, or its relationship with other variables. Detection is offline: the whole series is available at once, and the goal is the set of change-points that best explains it.

Installation

Choose how to install. This site documents the development version.

r-universe builds the development version from the main branch on GitHub, with binaries for Windows, macOS and Linux, so no compiler is needed.

install.packages("rupturesRcpp",
                 repos = c("https://edelweiss611428.r-universe.dev",
                           "https://cloud.r-project.org"))

Building from GitHub requires a C++ toolchain: Rtools on Windows; the Xcode Command Line Tools on macOS (xcode-select --install) and a GNU Fortran compiler (see the CRAN macOS tools page); or a C++ compiler on Linux (for example, r-base-dev on Debian and Ubuntu).

# install.packages("remotes")
remotes::install_github("edelweiss611428/rupturesRcpp")
install.packages("rupturesRcpp")

The CRAN release (1.0.3) has binSeg, Window and PELT with the "L1", "L2", "SIGMA", "VAR" and "LinearL2" costs, but not the rest of what this site uses:

  • Dynp and costFactory;
  • the "LinearSIGMA", "LinearL1" and "Custom" costs;
  • $predict(nBkps = ...), $getHistory(), $plotElbow() and $segments().

A first detection

Load the package and check that the version is 2.0.0 or later:

library(rupturesRcpp)
packageVersion("rupturesRcpp")
#> [1] '2.0.0'

Both series below change in mean and variance at t = 100. tsMat has one row per time point and one column per feature.

set.seed(1)
tsMat = cbind(c(rnorm(100, 0), rnorm(100, 5, 5)),
              c(rnorm(100, 0), rnorm(100, 5, 5)))

The variance changes as well as the mean, so the "SIGMA" cost, which models both, suits this data. Binary segmentation (binSeg) is a fast search method.

binSegObj = binSeg$new(costFunc = costFunc$new("SIGMA"))
binSegObj$fit(tsMat)
binSegObj$predict(pen = 100)
#> [1] 100 200

$predict() returns the end of each segment, so the last value is always the number of observations. Here it finds the one change-point at t = 100. The penalty pen sets how many change-points are kept.

binSegObj$plot(d = 1:2)

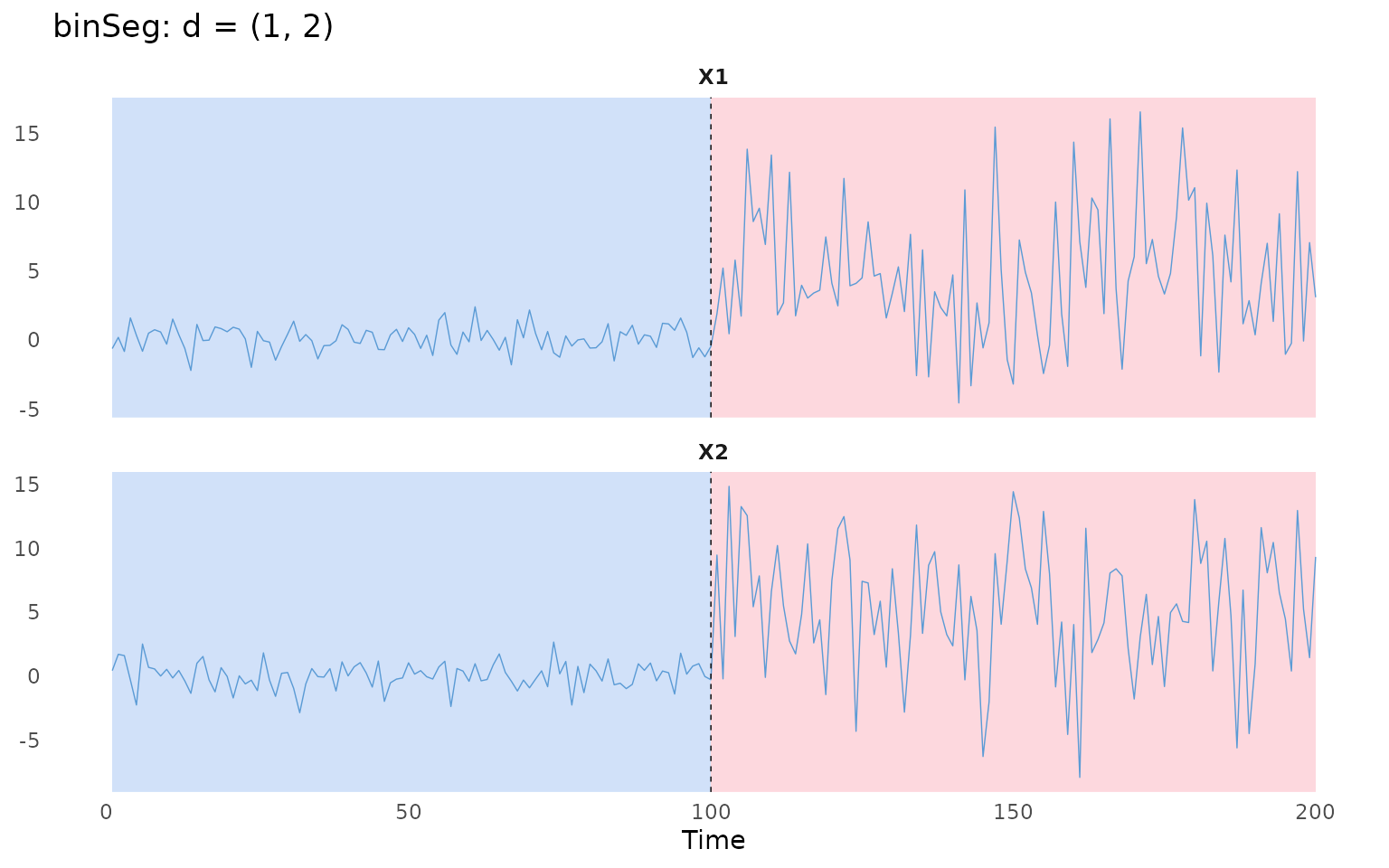

Two simulated series split into two shaded segments at the detected change-point, t = 100.

Next steps

The Documentation explains each part of a detection: the cost function, the segmentation method and how many change-points to keep. Case studies has longer worked examples.
